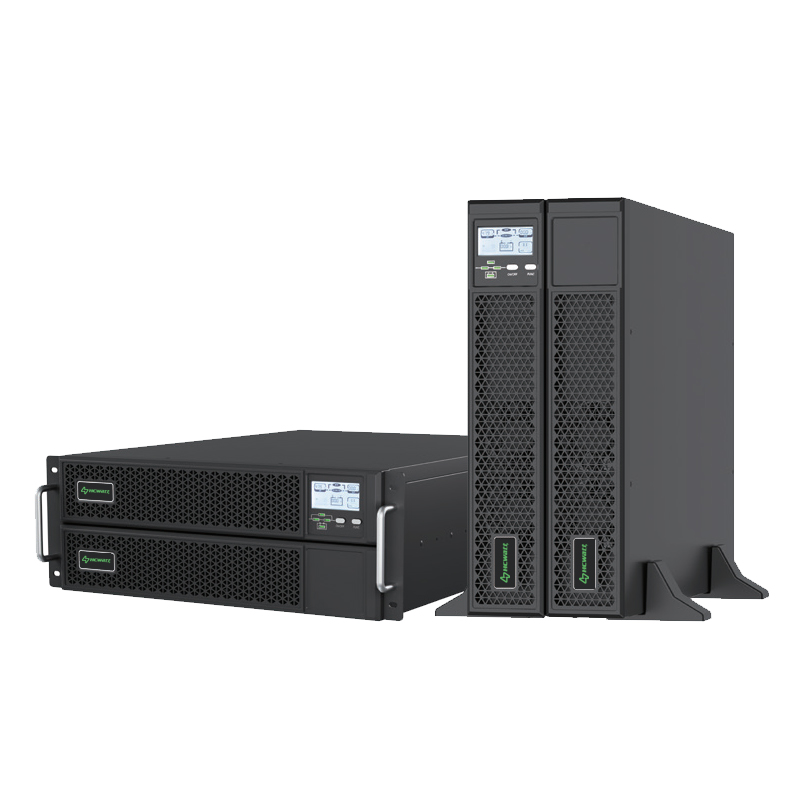

TS020LR
Rated power: 20kVA
Product Type: HCS Series 3/1 single phase Rack UPS
Operation: 3/1,online double conversion
Applications: Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, etc.
- Data Sheet
- Characteristics
- Download
| col2 | col4 | |
|---|---|---|
| Model | TS020LR | |
| Rate Power | 20KVA | |
| Cold start | Default output 50/60Hz | |
| Input voltage range | 190~499VAC(L-L) | |
| Input power factor | >0.99 | |
| Frequency range | 40-70HZ | |
| Output frequency | 50/60Hz,self adaption | |
| Output power factor | 1.0 | |
| Rate output | 220/230/240VAC | |
| Load regulation | ±1% | |
| Output THDu | <1% (linear load), <3% (non-linear load according to IEC 62040-3 | |
| Transfer time-INY to BYP | 0ms | |
| Efficiency-normal mode | Max 95% | |
| Efficiency-ECO mode | 98% | |
| Noise (dB/1m) | <62dB | |
| Overload(normal mode) | 110%:10min;125%:1min;150%:30seconds | |
| Battery | ||
| Model | External batteries,16-24 settable | |
| Quantity | External batteries,16-24 settable | |
| Max Charging | 5A | |
| Rate voltage | Default 192VDC,settable | |
| Crest factor | 3:1 | |
| standard | RS232,RS458,EPO | |
| Option | SNMP Card , AS400 , USB , Parallel kit , 12A changer , Air filter , Single Input kit | |
| Dimension,W*D*H(mm) | 440*730*173(4U) | |
| Weight(kg) | 30 | |
- Intelligent battery management.
- 3-level topology, high performance and efficiency.
- Online double conversion, full digital control.
- Output PF=1,high load adaptability.
- Wide range of input voltage tolerance.
- Adapt to half-wave load.
- Auto fault waveform recording.
- Self-aging function to save test energy.
